SLAM and Drones and HDLS….oh my

SLAM and Drones and HDLS….oh my.

There seems to be new tech, and “reality capture” methods popping up on the daily. The lens that I look at it through though is how can any of the technologies and methods get us to a point quicker and more accurately. No, we’re not in Kansas anymore.

SLAM (simultaneous localization and mapping ) , these devices and specifically the ones developed by GeoSlam, was the first time I bought a demo and did not want the rep to leave my office with what he brought. The conversation went something like this “I’ll take it”. “Okay we can write you up and deliver….” “No I’ll take what you have in your hands right now, how much” and subsequently we bought another. As far as the combination of speed, cost and quality (granularity of data) I have found it pretty remarkable in what it does. It has its limitations though and why we augment SLAM data with other collection methods to get us to a better whole, and again; this depends on the scope of the project.

Many of you, certainly if you are reading this, are familiar with HDLS (High Definition Laser Scanning) which most people just refer to as LIDAR . Why make the distinction? Because LIDAR really is the big tent, laser scanning as a whole, and all the machines, processes are the acts. HDLS typically requires individual set ups, the machines stay stationary and the process while slower and more cumbersome still produces the highest density of data. To help explain this I’ve come up with possibly a slightly less confusing metaphor or perhaps no help at all. Steam, water and ice. With steam water in the gas phase and it’s molecules are far part, relatively speaking, water, liquid phase are tight, and ice, water in solid form the molecules are tighter yet. With scanning the density of the points, like water molecules are tighter or farther apart based on the technology you are using and why we need to use different ones based on the scope of the project.

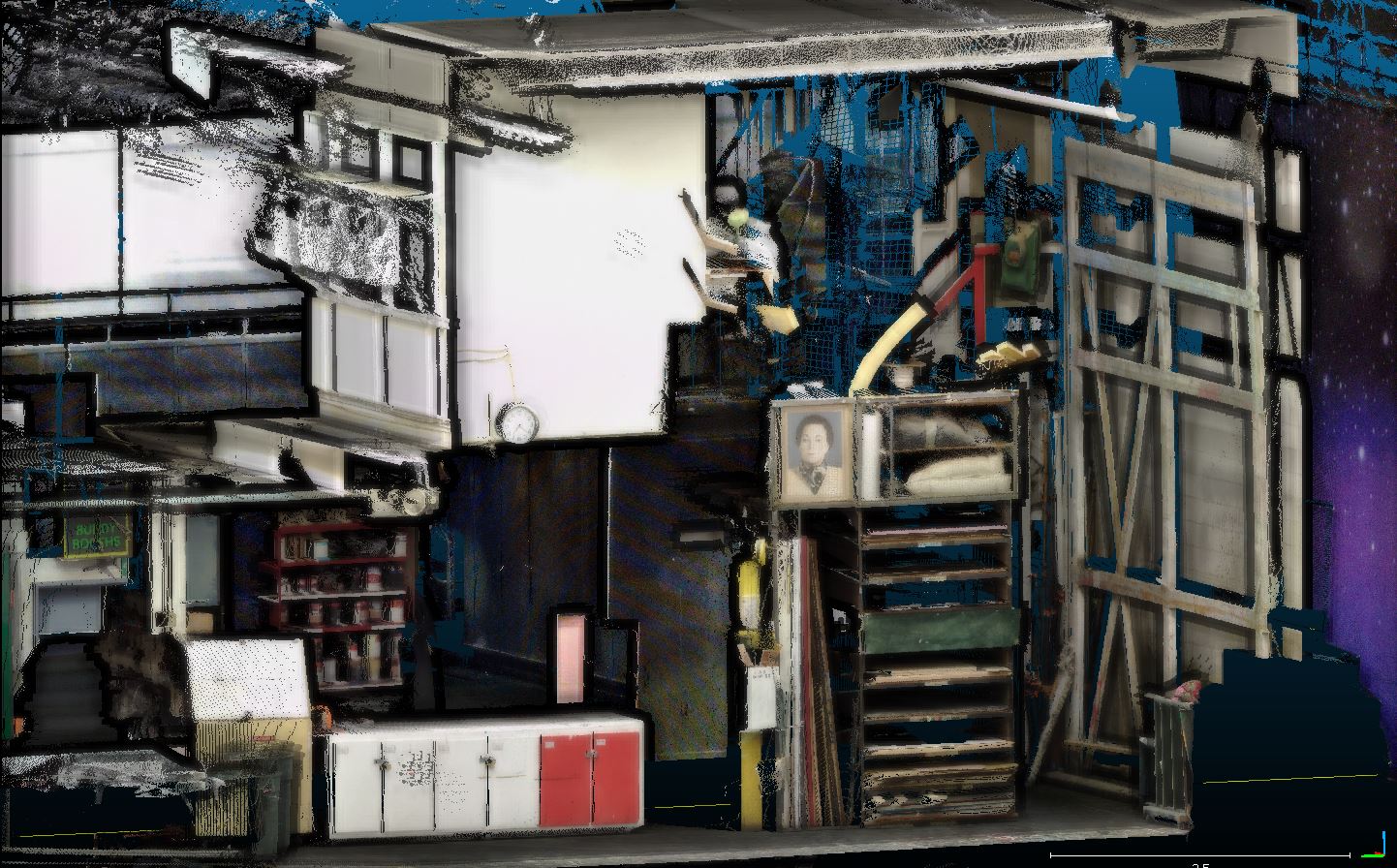

In the images I have included, the first one is created through HDLS using tripod mounted stationary FARO Focus. If you zoom in, you can see the handles on the cabinets, the images in the painting, etc, this is because the machine takes photos as part of the process, at least in this case) and maps them to the collected points, giving us a true 3D representation of the space, which is the back of a theater by the way.

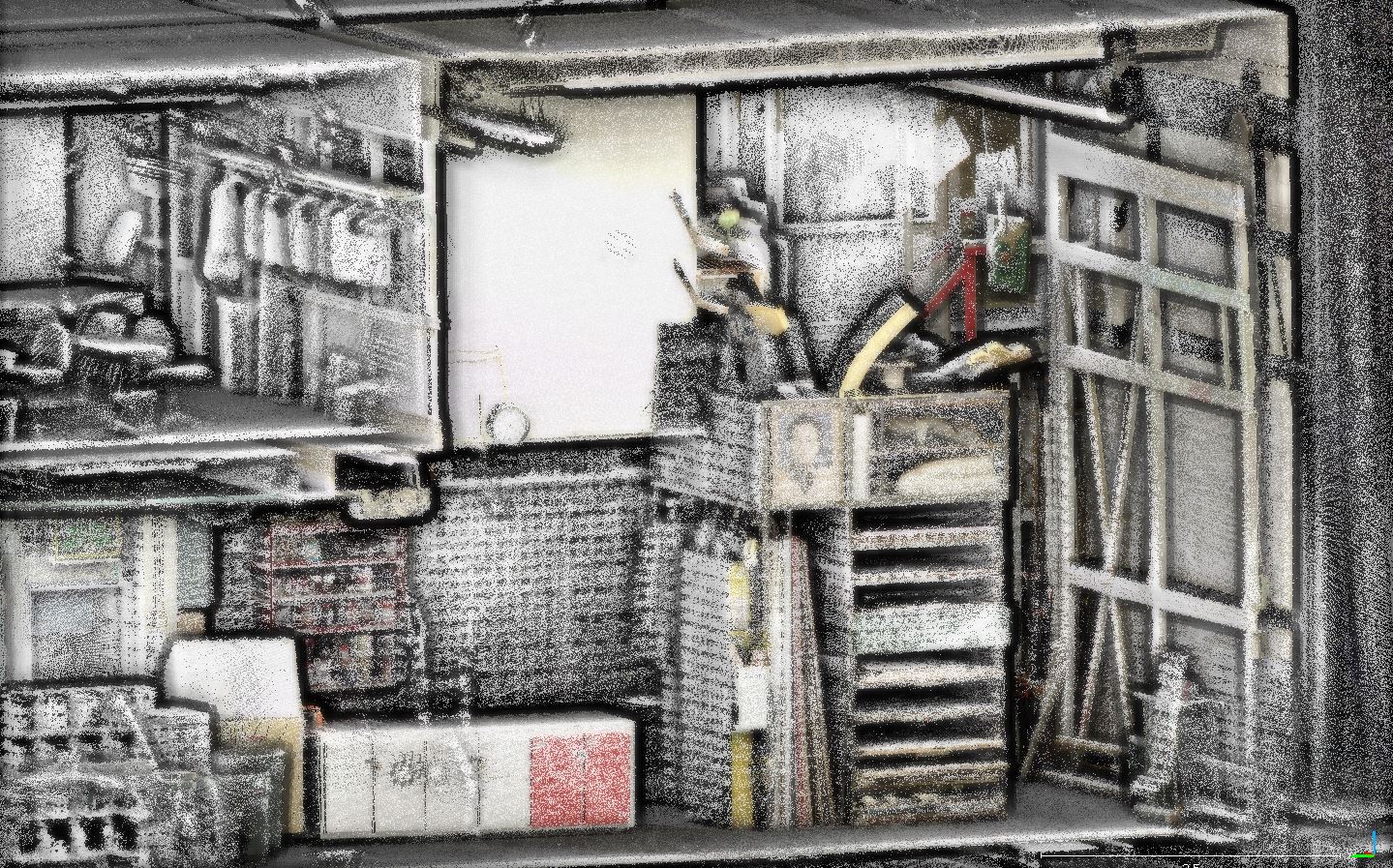

In the second I have included both the SLAM cloud and HDLS together, you can see where the SLAM backfilled around the objects and the cabinets, giving us data to model from, the extents of walls, heights and profiles of objects, etc.

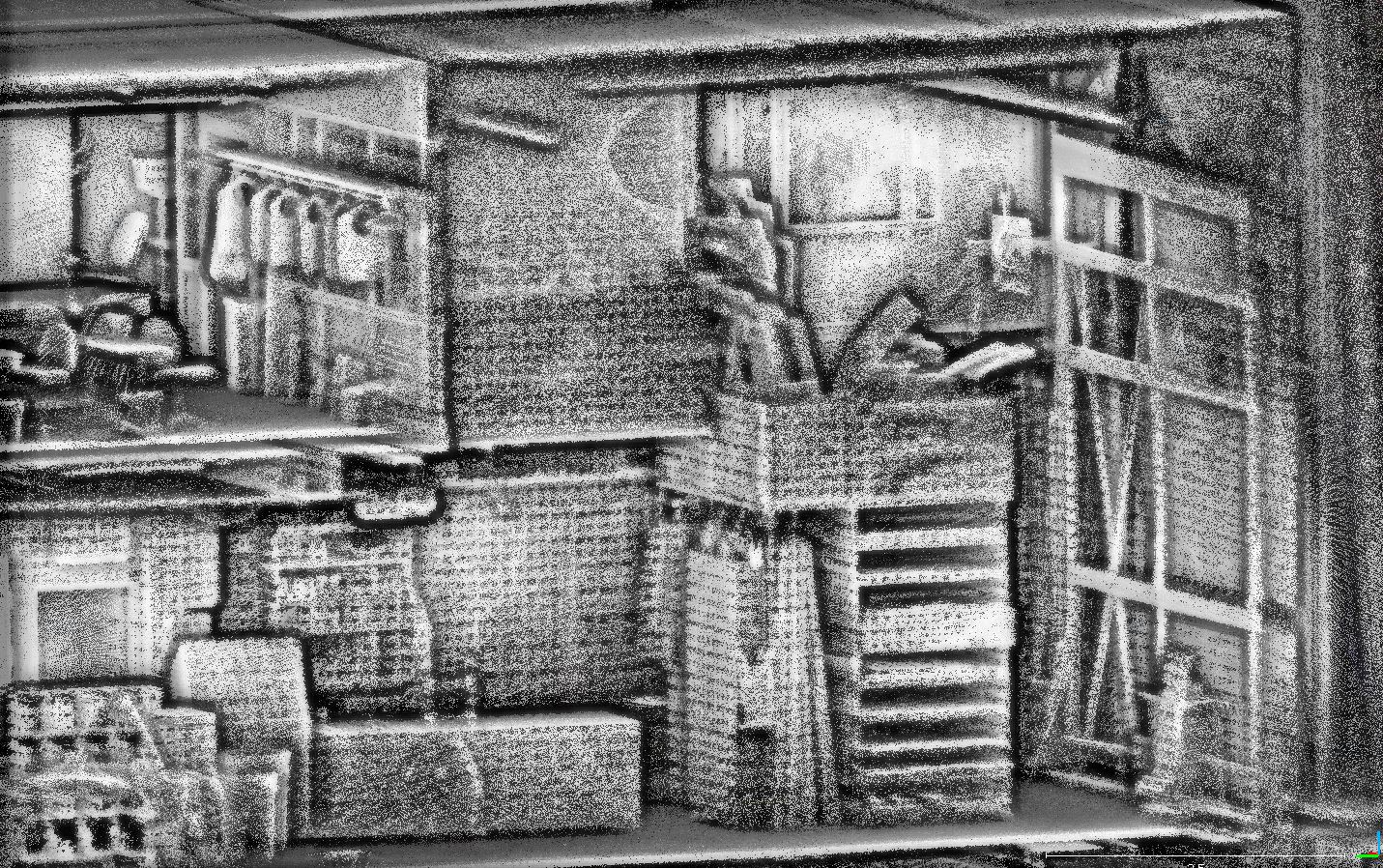

The last is solely a SLAM cloud, I can tell what and where the objects are but the cloud is just a mass, no photos, and the details/density would not allow us to determine, let’s say, the cabinet handles. Do you need definition of handles? Or in most cases of documenting existing, do you just need a volumetrically correct model that looks good in elevation and model view. We’ve completed projects where the client wanted a 3D database of almost everything because they were retrofitting an HVAC package into an existing and very significant building. They wanted to A) document everything properly and B) be able to fabricate any objects from the data in case they were damaged during construction. This was obviously a case where we needed to create high def scans through out the entire building, in classrooms though, which did not have significant architectural detail we used our own software, PKNail, to create the geometry. It’s the ability to blend technologies and capture methods that allows a service provider to best serve the client from a detail and budgetary point of view.  After you’ve completed the data collection, made sure all the data is registered to each other, even from disparate sources, that is SLAM with HDLS, with Drone captured data, etc. you’ll need to choose whether you want Revit or Autocad…but that’s an entirely different conversation, however, more times than not when using these technologies together you are creating a robust 3D data base of the building that can be revisited for any questions or even new documentation needs.

PRO CON
HDLS Best granularity of data. Point density. Almost all machines are stationary so every shot needs to be set up and registered. Although software advances have helped in automation. Slower process.
SLAM Quick, captures data at walking speed. Decent density for details and over all dimensions. Covers areas well where it has range. Limited range. Occasional hiccups and data “drift”
Drone Quickest, Exterior Only, great for massing and building geometry. Capturing data in hard or inaccessible places. Captures hi-res images of project. Limited data density to pick up details. Object distortion.

Pros and Cons of SLAM / HDLS / Drone ©Pointknown 2018

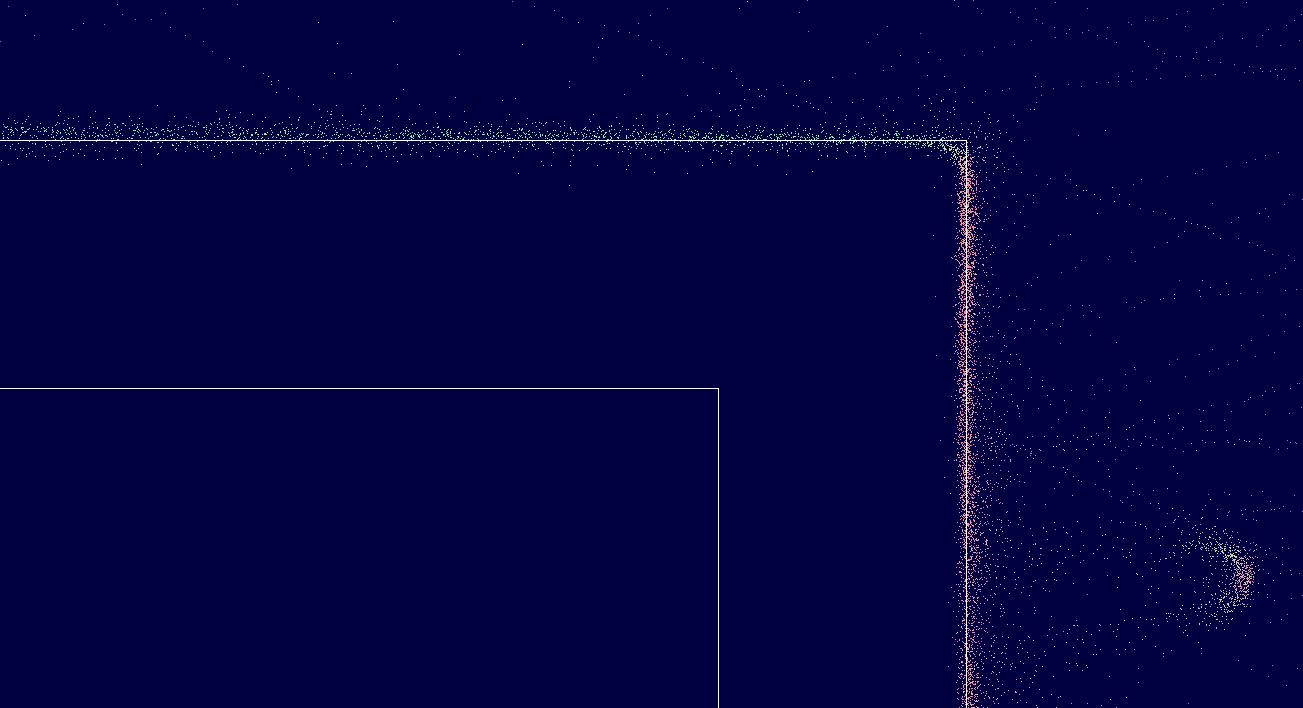

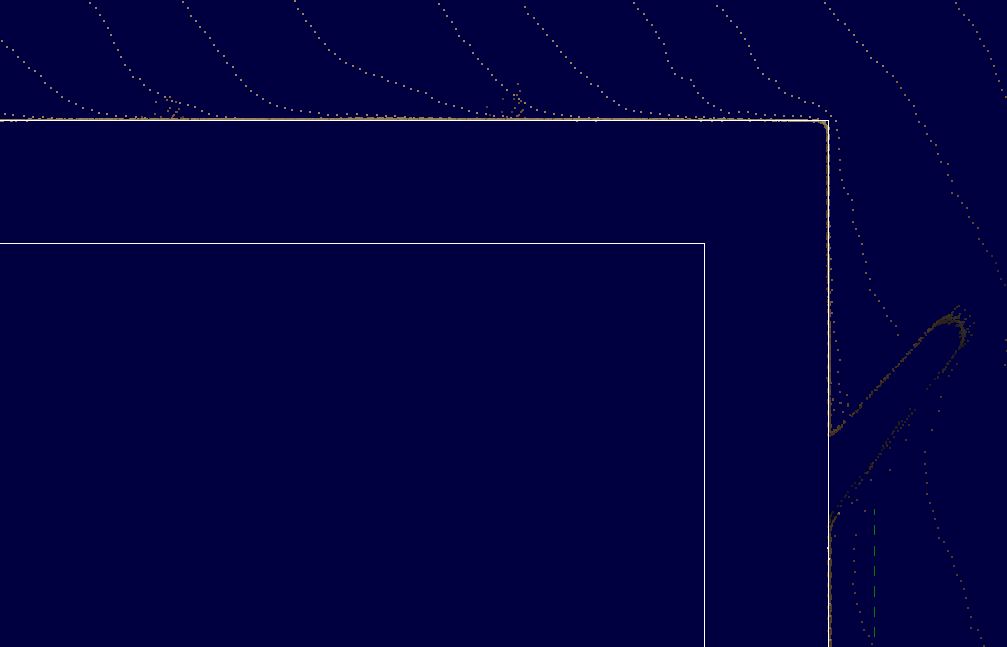

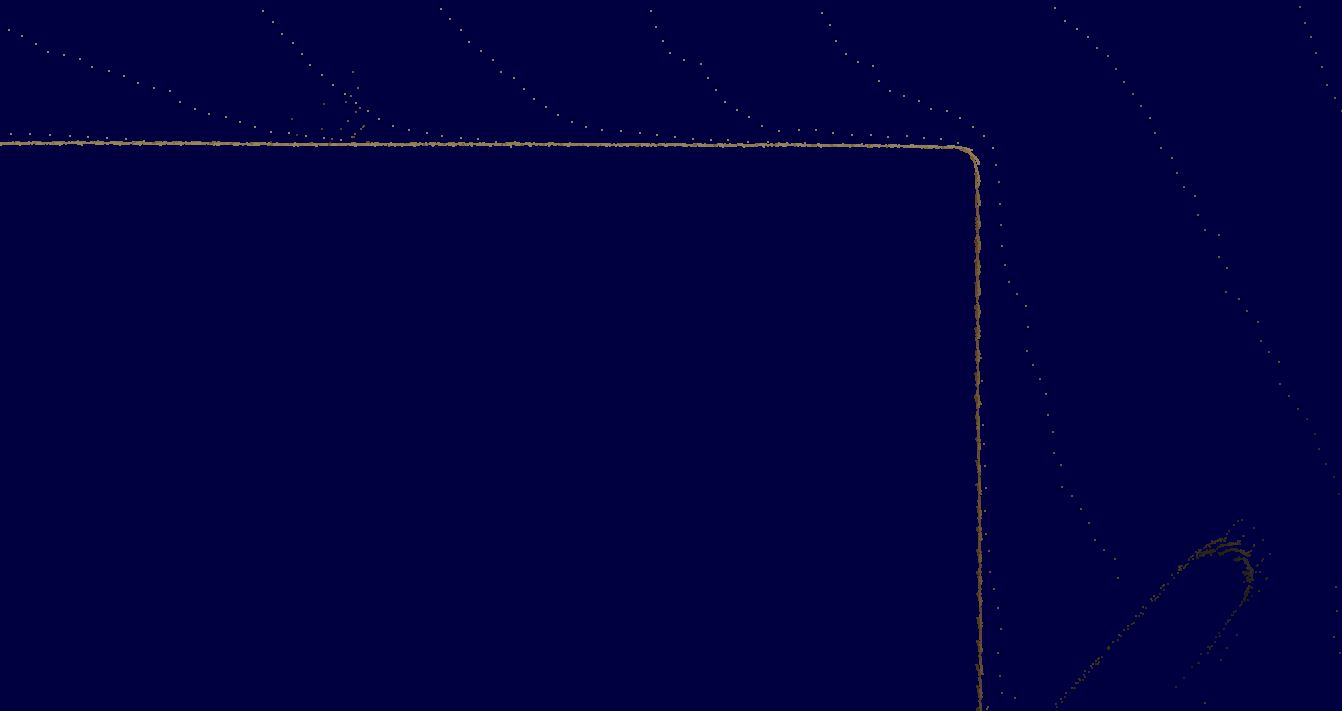

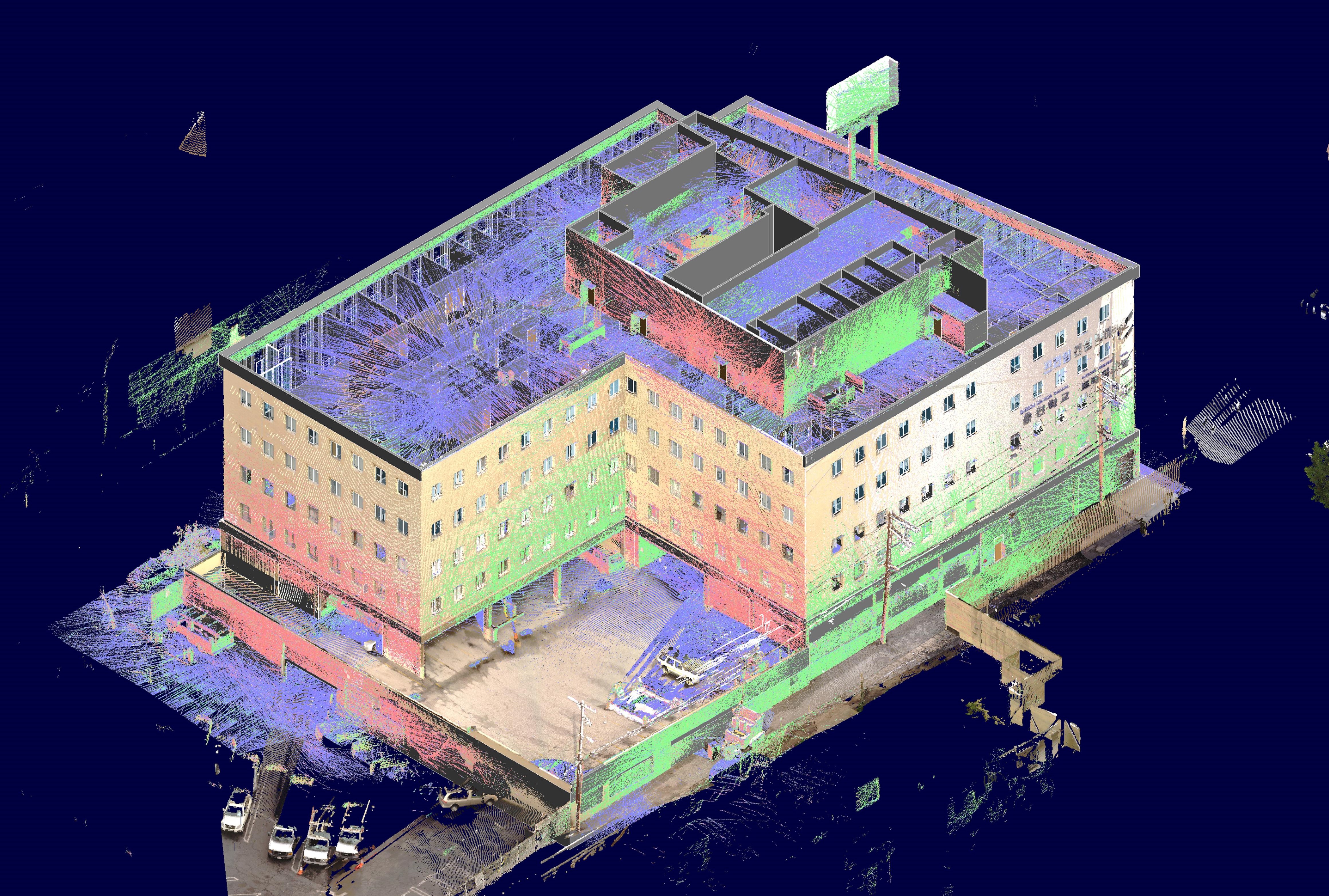

Below are some screenshots that will put most to sleep but if you’ve read this far, maybe not. The large one is of combined clouds (HDLS / SLAM) of a building we completed in LA.  They were registered together, and rendered in Revit / ReCap.  The first of the smaller ones is a close up of a wall with just the SLAM cloud. The second is the HDLS data overlaid the wall in Revit, the last is just the data. You’ll notice how tight the HDLS Line, with very little spread between the data points. The SLAM data looks faded in comparison and the “spread” between the farthest data point and closest is about 1/2”, that is the HDLS line looks like it was drawing with a ball point pen, the SLAM with highlighter. Experience in dealing with both sets, pro and cons can help.

Share

, , , , , ,

No Comments

Get in the pool! Historic Santa YMCA Begins Its Journey to Return to the Community.

Pointknown tasked with creating a Revit model of an existing YMCA in Santa Ana CA utilized a variety of technologies to capture existing architecture on site. We used a FARO Focus, GeoSlam ZebRevo, Leica Distos and our own PKNail software. And grit, and coffee, and ladders.

Hi Jim, The model is fantastic… 1st Six Words Upon Delivery of our Santa Ana YMCA Revit Model

Troy Fosler – Koning Eizenberg

The historic YMCA located in the heart of Santa Ana abandoned over twenty years ago is set to go under a massive rehabilitation and afterwards be returned to the community.

The proposed renovation of a landmark YMCA built in 1924 will restore the building’s role as a central anchor in the community of Santa Ana. The project aspires to influence positive lifestyles through wellness & fitness programs designed for a variety of local stakeholders.

Having been involved in hundreds of renovation and reuse projects, it’s awesome to be part of one that can have such a huge impact on an entire community. Good on ya Santa Ana I’ll see you in the pool.

Share

, , , , , ,

No Comments

300,000 SF in less than 12 hours.

delaware_bldgBuilding on my earlier SLAM post, we’ve been utilizing the combination of SLAM and PKNail Pro to great success.  Recently we completed over 300,000 SF of office tower in Wilmington, DE with the total time on site coming in just under 12 hours, yes that’s right 12 hours.  The scope of the project included BOMA reporting and CAD, and while the parking garages were not initially part of the scope, we walked the garage with SLAM so had a 3D database in case it was needed in the future, and in this case, it was needed in less than a week and we did not need to revisit the site, saving the client both time and money.

Process: Walk each floor with SLAM, create 3D database by floor.  Build out interiors, sample floor, with PKNail Pro, capturing typical window assemblies, doors, plumbing objects, wall thicknesses.  Back office included the combination of surveying data, creating spaces within Revit and exporting both spreadsheet data, CAD and plotted floor plans.



Share

, , , ,

No Comments

SLAM : A Revolution in Building Surveying & Documentation



buildingslamSLAM technology. SLAM, besides sounding rather cools stands for ( Simultaneous Localization and Mapping). And this is is an evolution in the creation of point clouds.  Why? SLAM technology allows a user to walk through space, and in essence, create a continuous point cloud of an entire space.  Previous technologies require a machine to be placed on a tripod, and continually set up in different locations.  To get a full ‘picture’ of whatever you are scanning separate scans  have to be ‘stitched’ together, which is not as automated a process as you might imagine.   While Leica continues it onslaught of proprietary products and continuous scanning with its Pegasus systems, SLAM is based on open standards and researched extensively through the robotics industry.  Off the shelf technology in the form of Hitachi Lasers, Rasberry Pi Processors and the like will start to open up new devices and allow new manufacturers to enter what has been a highly technical and closed field.

While SLAM devices do not have the high fidelity of HDLS, it does allow for some pretty excellent data collection that is typically at a level needed for most building documentation, leaving highly specific / detailed tasks for the more heavyweight scanners, think exposed and extensive MEP, physical plans, historic documentation/reconstruction.  Personally, using SLAM devices in combination with our PKNail Pro allows us to move through spaces quickly, efficiently, accurately capturing building geometry with both systems and creating dimensionally accurate Revit objects on the fly with PKNail Pro.    This allows us to get in and out of space with minimal interruptions, and allows for quick turn around which is great for building owners/investors through due diligence, BOMA calculations or looking to repurpose/reprogram a building.  Recently, we were in and out of 300,000SF of tower in Wilmington Delaware in less than 36 hours.

While SLAM allows for the quick collection of data, interpreting, understanding the data and turning the data into usable documentation still remains very much a craft process.  Too many times I have seen a product, such as a Revit model, turned out by groups who fail to understand how building are put together and designed which eventually turns into a product that confuses and confounds the people/architects who need to use it.   In the next post I hope to dive into this process vs. product a bit deeper.

Share

, ,

No Comments

EXISTING BUILDING SURVEYING : POINTKNOWN DOCUMENTS OCEAN SPRAY HQ

PK Ocean SprayPointknown was tasked with capturing Ocean Spray’s HQ, over 160,000 SF of Office Space and Labs over 3 Floors  set on  hundreds of acres of woods and bogs in Lakeville, MA.  Because of the nature of the building and deliverable we were able to capture the bulk of the features and geometry directly with PKNail Pro, allowing us to measure and model in real time in the field.  Interior Wall Partitioning, Bathroom Layouts, Windows and Doors.  After the geometry was completed we placed the acoustical tile grids, and placed objects directly with the Revit interface.

For surveying and documenting buildings having a set of tools allows a provider to offer the right solution set to your clients.  Not everything’s a nail so carry more than a hammer.  We first developed PKNail Pro because we needed another tool set in the field, and started offering it commercially because clients asked us if we would provide it.  Does it do everything, no; it was intended and designed to capture typical conditions very well, and quickly by turning measurements directly into Revit based objects, walls, windows doors, locate / place wall based objects from plumbing to electrical to fire protection and it does that very well.

Quote of the Project Upon Early Arrival and Hearing Barking/Howling:  “No…those aren’t dogs, those are coyotes.”

Share

, , , ,

No Comments

Capture Existing : UMass Old Chapel

UMass Old Chapel 3 Project : UMass Old Chapel
Location : Amherst, MA (University of Massachusetts)
Client : Finegold Alexander
Summary:

Interioreview / PointKnown was hired to survey/document and create an Architectural Revit model using generic components to accurate represent the building.  Accurately locate and model interior timbers, chapel and steeple.  Include all classrooms and offices.

Technology:

Hardware :   Faro 330 :  Disto D8

Software:  Autodesk Revit : PointKnown PKNail Pro

Process:

Scan and register pointcloud for exterior, chapel and timbers.  Import pointcloud to Revit model architectural objects included in the scan. Measure and Build direct to Revit using PKNail Pro, extents of building footprint for quality control to compare with pointcloud data, and measure and model all rooms, offices, and classrooms.  Include Kitchen and Bathroom layouts as they occur through out the building using PKNail Pro to place all wall based objects (Toilets, Urinals, Sinks..)

PointKnown Captures Existing Buildings

Software / Services / Consulting

Share

, , ,

No Comments

What Owners Need to Know When Documenting Existing Buildings ….Part II

costshadow1

I recently was invited to present for an IFMA Technology Council Webinar (Link to Deck Here).  Both Carlos Vasquez from Epic Scan, the other presenter , and myself had come both mostly to the same conclusions having never met and working on two different coasts.  “It really is the wild west out there.”   For instance, there are no standards on deliverables or when putting out an RFP for this kind of work.  Plus, there are a lot of people out there buying scanners and saying they can do everything that comes in the literature with the hardware.  However, owning a piece of hardware and being competent at it are two vastly different things.   Just because I own a pair of skates doesn’t mean I can get on the ice with the Rangers.  Plus, if the firm you are hiring only has one piece of hardware expect that the quote you get will be one size fits all.

My approach to any given job is to have a detailed conversation with whoever is going to use the Revit Model or Data and what they need it for.  For example, an owner doing due diligence on a property has vastly different need and budget then an architectural firm doing an adaptive reuse project on 200,000 SF of Industrial Mill Space.  So we tailor the project and technology around their needs and budget.  I would argue that an owner look at each project and start with the minimal viable product (MVP) or data set they need and then add details as the project warrants.  With that said the base line product should still be solid.  For example, we might be asked to come in to verify square footages of a building during due diligence.  This is to make certain that the prospective owner has faith that the marketed 100,000 SF actually is 100,000 SF of rentable space.  This might just require us to get the shell and cores correctly.  But be certain that is done well enough so if going forward we need to add the mechanical plant, or interior partitioning, etc. we have a good foundation to start from.

If you are looking to document your building for almost any stage, due diligence, BOMA calculations, Interior Design, Adaptive Reuse there are a couple of things to keep in mind.

• Size and Complexity of the Project
• Interior/Exterior
• Deadlines and Time Constraints
• Budget and Available Resources
• Uses for Models

and when choosing a vendor or service provider…get references, see if they have done similar projects, ask them about their process and their technology.  When done right having a model or your building documented properly, accurately pays dividends many times over, when done wrong it has Excedrin written all over it.

Share

, , , , , ,

No Comments

Handheld Scanning for Architecture Gets Real….Google Enters The Picture

project-tango-google-mapping-outThe jigsaw pieces are starting to fill in with google’s Project Tango , and the structure.io sensor.  Capturing existing buildings has never been an easy task, as much as the purveyors of existing scanners would like you to believe otherwise.  Current laser scanners are expensive and the process was usually too much, too much effort, too much expense for most projects.  Additionally, since the entry price was so expensive and each scanner has its own proprietary software, lack of open standards slowed innovation; but here comes handheld devices starting at around $400, and an open source universe that lets a universe of people to start working on current problems. Paracosm working with Project Tango looks like it has come up with a crowd sourced platform to put together fuller models of buildings from multiple people/scanners.

From the videos and data, and although everyone admits it’s early.  A regular Joe can walk with a handheld scanning device and capture their world.  Allowing for the crowd sourced, user generated 3D mapping of the world.  Besides the eery feeling that the Matrix was more prophetic than fiction what can be done with all this cool stuff, what’s next?

It will be in the processing of this data and digestion of it that will make it launch to the next steps.  Typically the hurdle of laser scanning is going from scanned data, to data that people can use.  Think of scanning this stuff….cool.  To floorplans and 3D walk throughs for realtors.  So if a realtor can take a $300 handheld scanner, walk around a home or apartment, and have it simply turned into a walk through tour and dimensioned floor plans of a home, excellent. Share those floorplans with a carpet installer for a price, great.

Before scans and point clouds were expensive to attain it looks like the price is about to drop dramatically.  Dramatic price drop, easier to attain, increased supply. Increased supply, bigger market. Bigger market, more people. More people, more better.  We are just at the start.  There will be a lot of companies starting to fill in ways on how to capture and deal with this data and since the world spends about $8 trillion on construction alone there will be room for players.  You’re invited.

Share

, , , , , , ,

No Comments

Deep Analytics Coming to AEC : Data Wants To Be Free. #BIM #XML #AEC

gorilla thoughtSo with Google announcement of Project Genie : Vannevar Technologies and with IBM opening Watson to the programming community one has to believe that deep analytics is coming to the AEC industry.  Not silo attempts by industry leaders.  It’s got to get easier to run energy analytics, design options, facility management…integrated in a way that is push button easy, and as anyone in the industry can attest we are still far from push button easy.  However, getting thousands of people, the collective intelligence of the programming community solving problems.  Getting data centralized, performance feedback, learning from that virtuous circle, that is exciting stuff.

Data is the foundation of all of this, without the data, we have nothing to run with.  For the AEC environment, it’s the building whether it’s in the design phase, or most likely, already operating.  How long will the data reside in proprietary formats?  How long is that a viable business model?  We will see that companies that can provide the most value with the data start to thrive.  Hence the opening up of Watson as a platform and the fact that Google is coming to the AEC marketplace shows there is some seismic shifts in store.  I’ve written before that getting the AEC crowd to change their stripes, adopt new technologies, can be difficult, however it’s really going to be Autodesk 360, and what they can offer you in house vs. the world.  There has been talk of the ICFxml gbXML  or ways to have BIMs in an open environment.  This may very well be the tipping point.

Share

, , , , , ,

No Comments

Google X : Project Genie : Vannevar Technology -> Wants to Change AEC, Change the World

gren buildingsThere seems to be little known about what’s going on at this century’s Xerox PARC, Google X and it’s Project Genie, but a small amount of information was unveiled at ArchDaily.  Google’s commitment to sustainability is apparently going to reach into the AEC industry and possibly trample into Autodesk’s campsite.  While other software firms are hampered by their own internal growth and sales and what they can commit to marketing, (Autodesk wins there) and R & D.  The folks at google, know no such bounds.  The spinoff Vannevar Technology (which sounds suspiciously close to Vandelay Industries,) is working on creating…..who knows. Their website states “Reimagining building design for a more sustainable future.” Which is about as exciting as the 5th slide in a time share deck. However, google has the clout and cash in what can be a very stubborn, hesitant to change,” what are you talking to me ” culture.  Typically the principals in architecture firms don’t care about technology, they have minions to get it done so why invest in software or new tech when my current pricing, business structure, ROI formulas are working and set in stone, plus I don’t like business that much I like designing building so the less I get involved the better.  Engineers will analyze and without comparable metrics to analyze, then…paralyze. Construction managers will embrace tech if it saves the time, which equals money, so time and money but they have to live with the consequences, so embracing new tech….tough crowd.  Which is far from saying that things can’t be done better.

The small bit of copy on the web site rightly touts that buildings, yes buildings produce the most greenhouse gases, 40%, so what is google going to do about it?  Systems, software, construction methods, materials, vertically integrate and go borg on the industry.  My guess is whatever they do, they will be building some buildings with Vannevar Tech for proof of concept and case studies.  My guess it’s got be some integrated design and FM system to produce tangible CO2 / greenhouse gas savings, plus energy savings.  Some have guessed it might be a SketchUp on steroids, but then why did they sell it to Trimble. And who cares about the design process, what part of that is the current lifecycle of a building, very little, I’d want to own the building for most its life, it’s operating life, and want to own the management of it, and the data.  There ya go, so then, IBM and Maixmo, meet google, you might know them.  These are the crazy kids floating balloons for internet access. loon
